Client from Macklin Saskatchewan contacted me to build a Reverse Flow Smoker. As a kid I grew up traveling to our family farm just east of Macklin in Reward Saskatchewan. But I’d visit Macklin to see my great great grand mother Birns.
Here’s Joel’s Build
Custom Smoke Texas Offset Smoker -Joel design
24″ x 48″ main chamber 21703.68 inch chamber
24″ x 24″ left hand firebox 10857.02 inch volume which is 150.01 % which is perfect ratio
drop out ash clean out
log rack
single grate with sliders 23″ deep by 44″ wide
offset will have a adjustable diverter plate
smoke collector including a 6″ stack at 19″ tall with rain cap
all hinges new cnc design
counter balance on main chamber and mini counter balance on fire box
|Dialed air intake – 32″ air intake suggested 1″ opened on dial
standard caster wheels – 5″ with locking and 2 non swivel

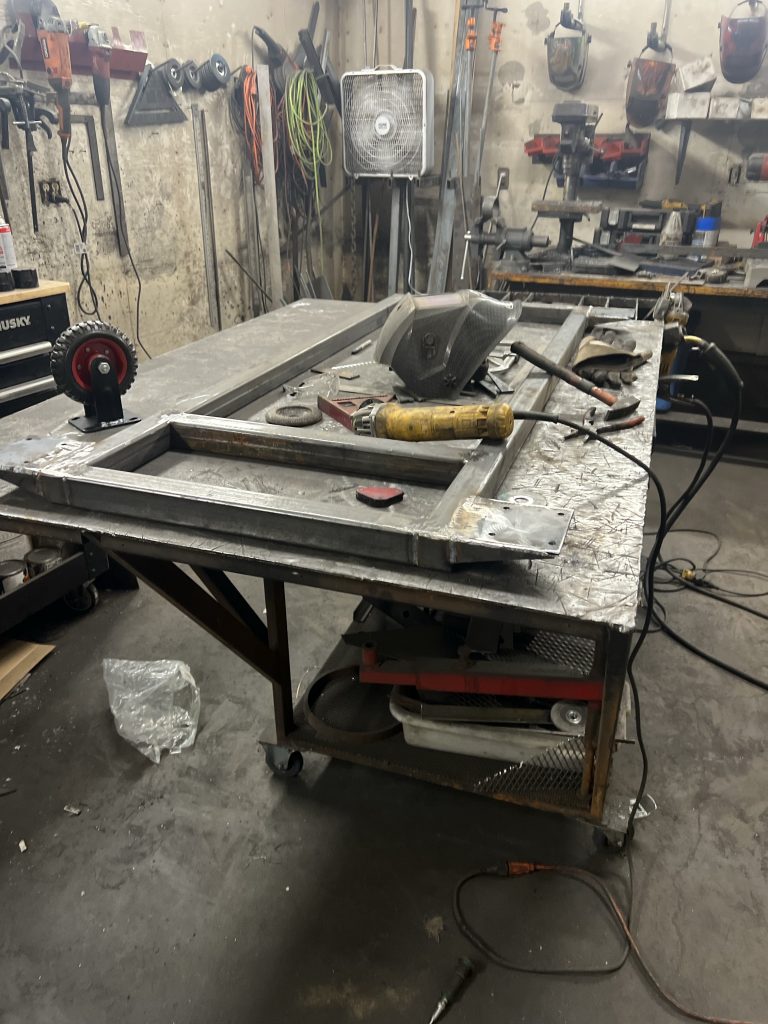

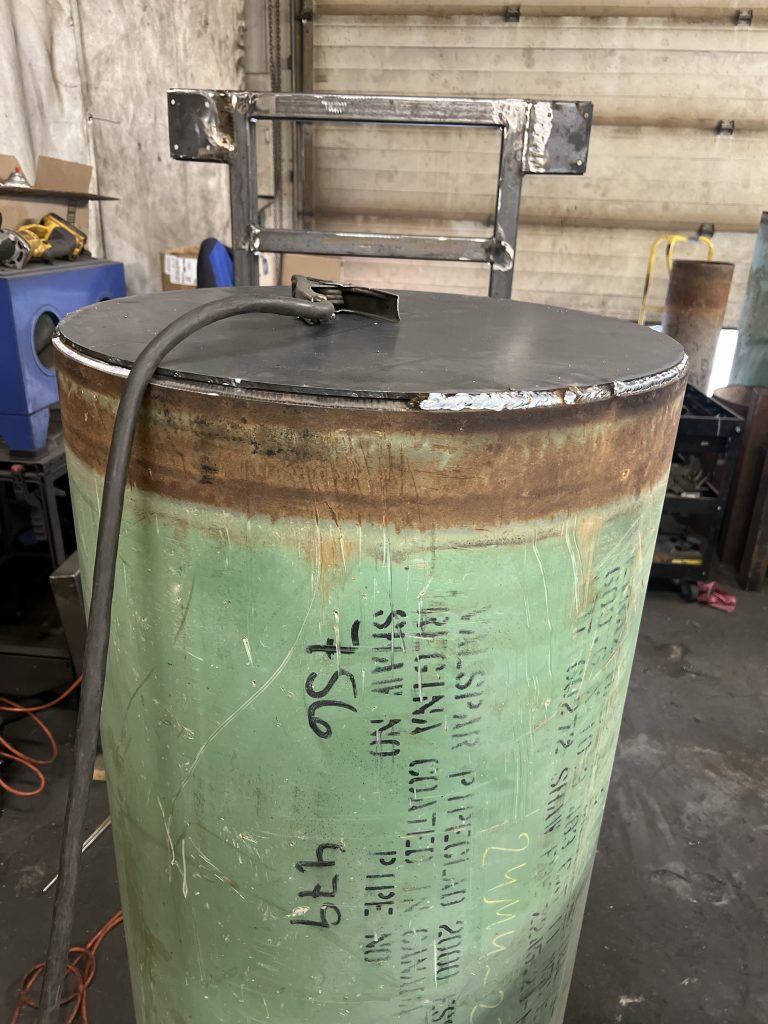

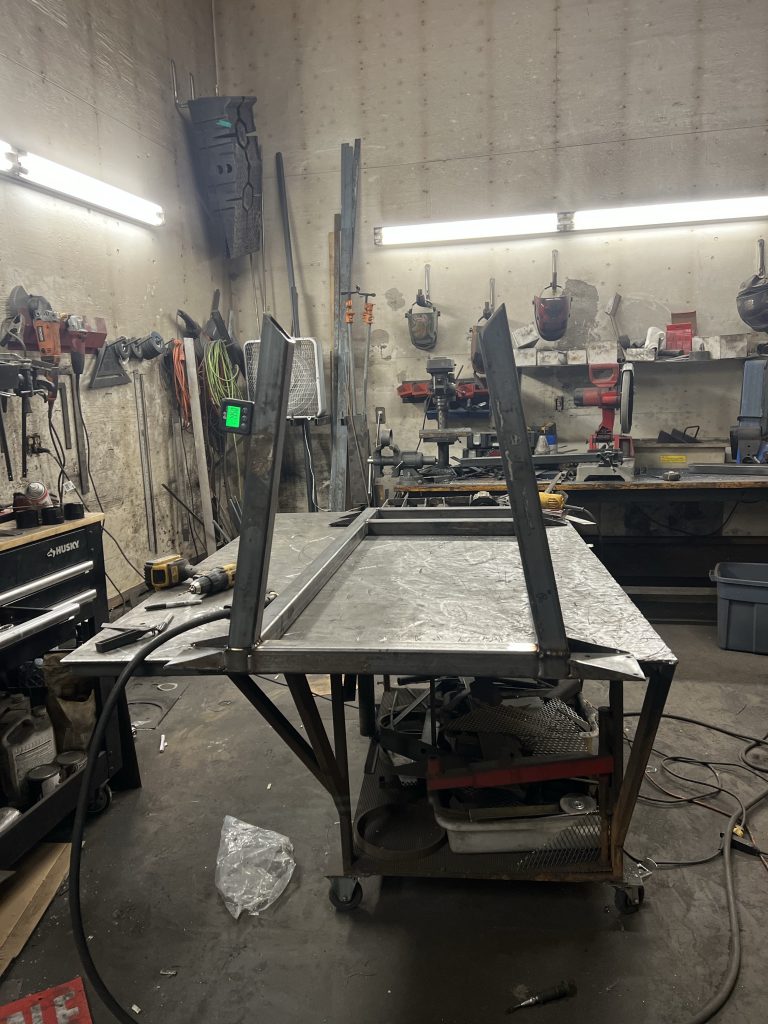

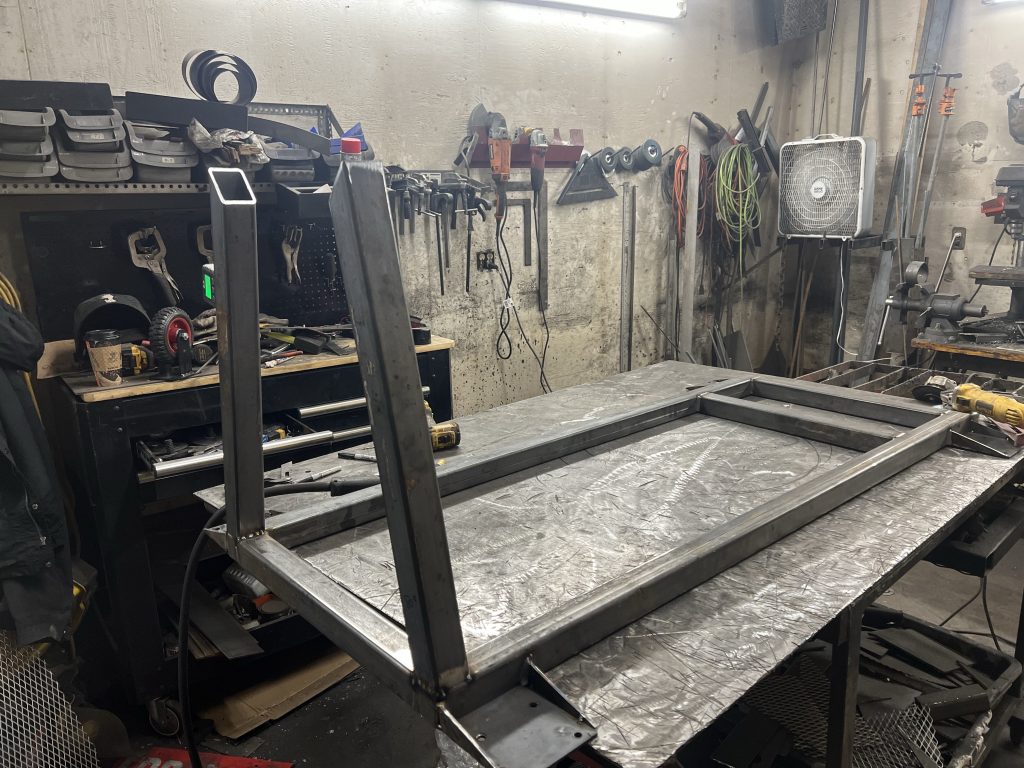

Quick update. Build half the frame and wheel supports. Capped both ends of the cook chamber but ran out of cap material for the firebox. I’ll pick that material up in the morning, swear I had it some where in the shop! We’re doing a Texas offset with grilling station on the firebox.
